Crouse-Hinds Type M Features

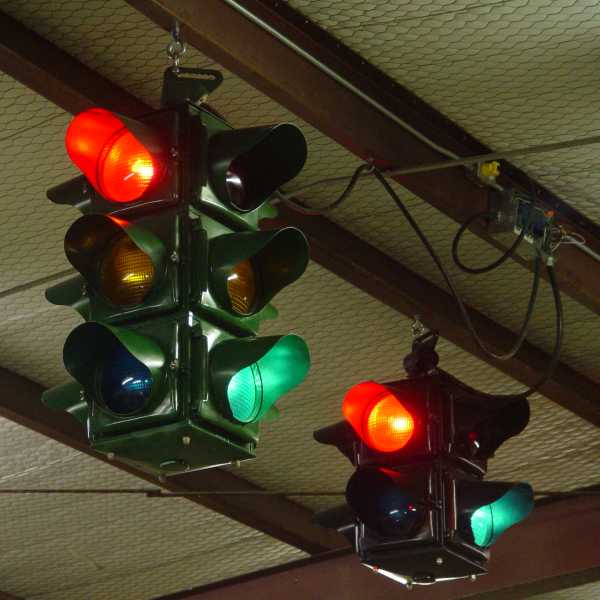

The Type M signal appeared in 1959. It was lighter in weight than its predecessor, the DT, and most Type Ms had aluminum reflectors. The shape of the doors gave it a stockier appearance. The visors were interchangeable with the earlier Type D and DT signals that had removable visors.

Click any picture to open up a larger view in a new window.

Type M Details

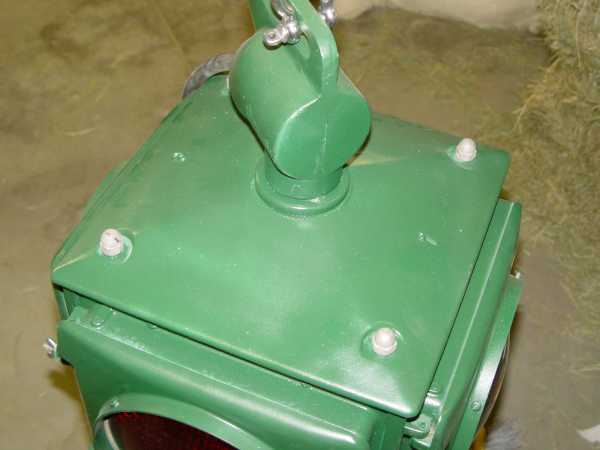

Classic Crouse-Hinds barrel type hanger and
Type M 4-way top plate marked 1 & 3 (indicating main st.)

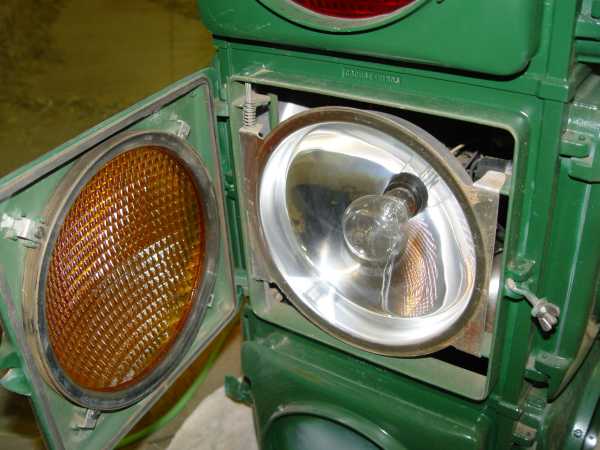

Polished spun aluminum reflector.
More conventional lens gasket to block dust and moisture.

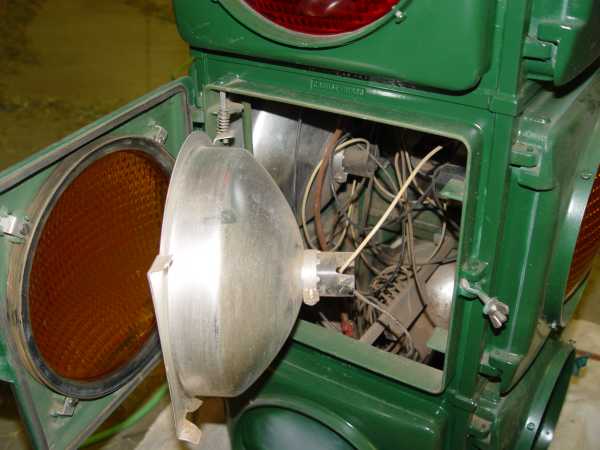

Terminal blocks mounted in each section.
Some lenses had "faint smiley" facets.
